Barbero-Mota, M.; Annio, G.; Rucher, G.; Martorell, J.

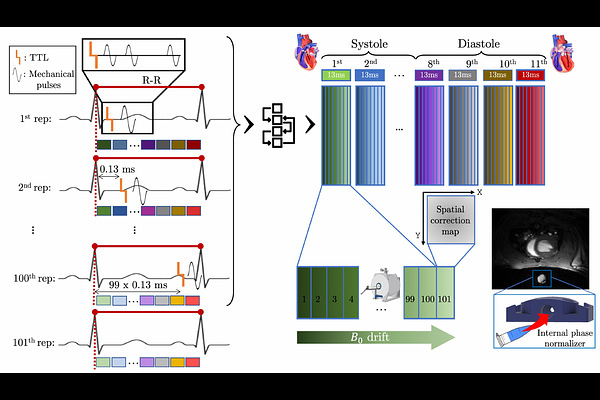

Myocaridum biomechanics are a biomarker for multiple cardiac pathologies. However the rapid and complex heart motion hampers accurate measurements of the tissue stiffness. Current in vivo methods for the evaluation of myocardium mechanical health are either highly invasive or can only provide with a global surrogate of heart function as they suffer from poor spatiotemporal resolution. We propose a new in vivo technique, transient magnetic resonance elastography (tMRE), to assess the dynamic cardiac biomechanics. tMRE is able to quantify local shear wave speed as a proxy for myocardial stiffness at user-defined times within the cardiac cycle. We report proof-of-concept results where we probe the septum of 4 different healthy rat specimens at 3 physiologically distinct cardiac phases. We provide with apparent speed measurements for early systole, mid-late systole and early diastole that match the expected values from the cardiac cycle physiological mechanics. We correct for non-negligible geometrical biases using literature results and report true stiffness values where possible. Finally, we validate tMRE in phantom experiments.
